Wave soldering machine manufacturer – the complete details of it

It cannot be denied that soldering is one of the most important processes in the electronics industry. This is a basic thing that a working individual in the said industry should be aware of. The process helps in attaching different electronic components along with the printed circuit board. This is what forms an electrical connection. But different forms of soldering methods will depend on the application and specific requirements of clients. Different types of soldering include selective soldering, robotic soldering, wave soldering and robotic soldering and more. In the following section of the blog, we are going to discuss the different steps of wave soldering machine manufacturer.

wave soldering machine manufacturer

When it comes to wave soldering process, this is an in-line process where the underside of the PCB is treated with flux. Then they are immersed in the liquid solder. There is a machine that is used for carrying out the entire process.

The first step is melting the solder. In this process, the basic requirement is to melt the solder. The wave soldering machine comes with solder contained within the tank. The tank is then heated to melt the solder. After that, an appropriate temperature is reached for meeting the consistency. This is how the process of wave soldering machine manufacturer is taken further.

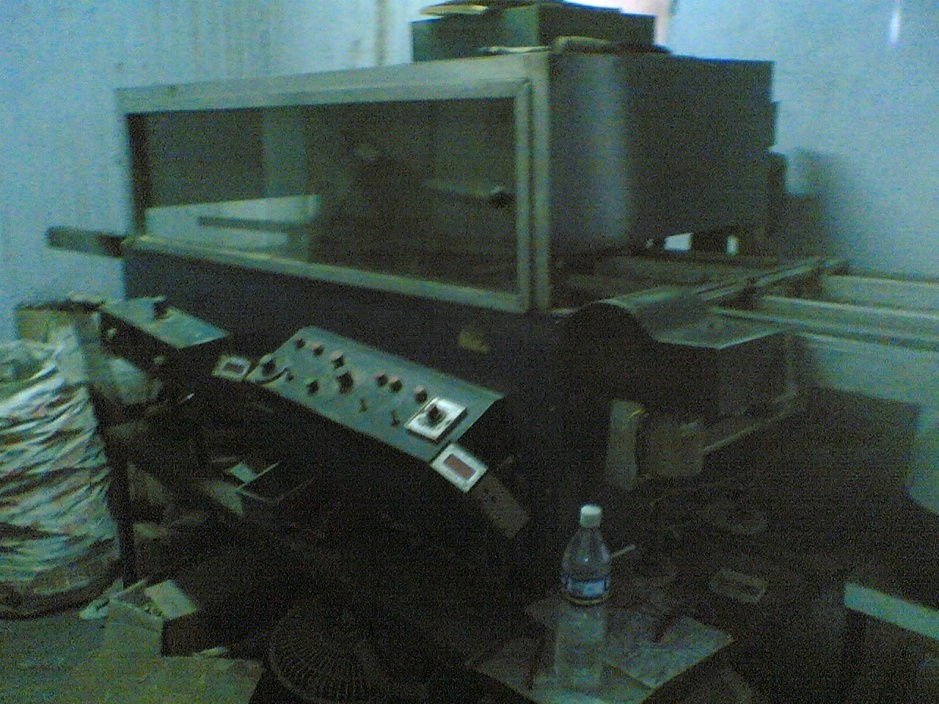

soldering machines

The next step is to clean the components. This is one of the most crucial steps to be carried out in the manufacturing process. The components that need to be soldered are cleaned thoroughly in the step. In case there are oxide layers formed on components then they will be removed. This is done by the process of fluxing. There are two main forms of fluxing. They are corrosive fluxing and non-corrosive fluxing.

The next step is called placement of PCB. When the solder is melted, then it is important to clean the soldered components. Then the PCB is placed on the melted solder. The board is held with metal clasps of the machine that ensure firm positioning and placement of the PCB.

wave soldering devices

The next step is the application of solder. When the PCB is placed properly, the molten solder is applied and then it is allowed to settle. In this step, sufficient time is allowed to the solder in settling into the joints completely. Also, it is ensured that there are no bumps.

The final step is cleaning. In the wave soldering machine manufacturer, the flux residues that are formed will be cleaned through this. The circuit board is washed and then cleaned with the help of the deionizer and additional solvents.

All the above-mentioned steps are important when it comes to the wave soldering. We hope that this post helped you in getting the necessary insights in wave soldering. The wave soldering or any other type of soldering technique will require a lot of expertise. You just cannot afford to make mistakes in the soldering because it can lead to spoiling of the PCB design. This is why it is the best idea to leave it to the experts.
